Angle Analysis

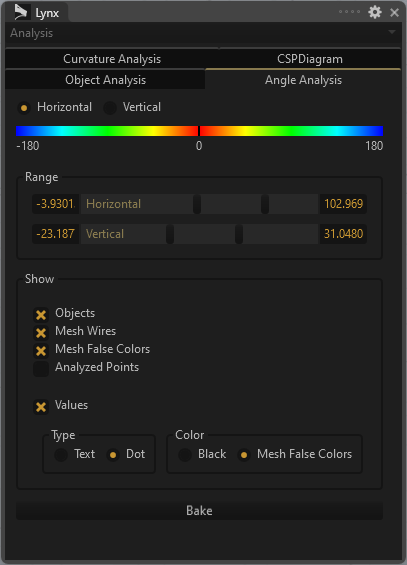

The Angle Analysis command analyzes objects and displays the angle relative to the active construction plane
using false color mapping (meshes or points), texts or annotation dots.
It analyzes horizontal angles and vertical angles; minimum and maximum; and values of angles in a range.
The command evaluates surfaces, polysurfaces, extrusions, meshes and blocks.



Panel
lynx

TabItem
Angle Analysis

Main command
lyAngleAnalysis

Related commands (only for horizontal angles)
lyBakeCompass
lySetNorth
lyShowCompass
