Shading Analysis

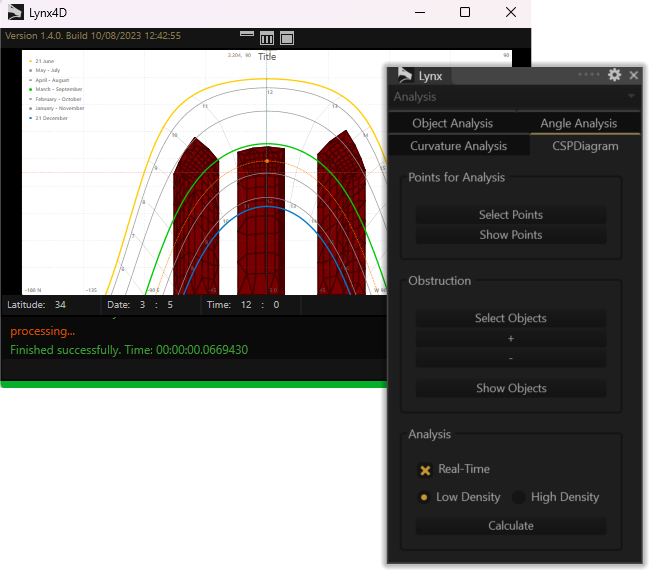

The Shading Analysis command calculates solar obstructions on a point represented in a cylindrical sun path diagram
which can be displayed for any are of the world.
The command evaluates surfaces, polysurfaces, extrusions, meshes and blocks.



Panel
lynx

TabItem
CSPDiagram

Main command
lynx

Related commands
lyShadowAnalysisLD
lyShadowAnalysisHD
lyShadowAnalysisRT
lyBakeCompass
lySetNorth
lyShowNorth
lyUpdateSun
